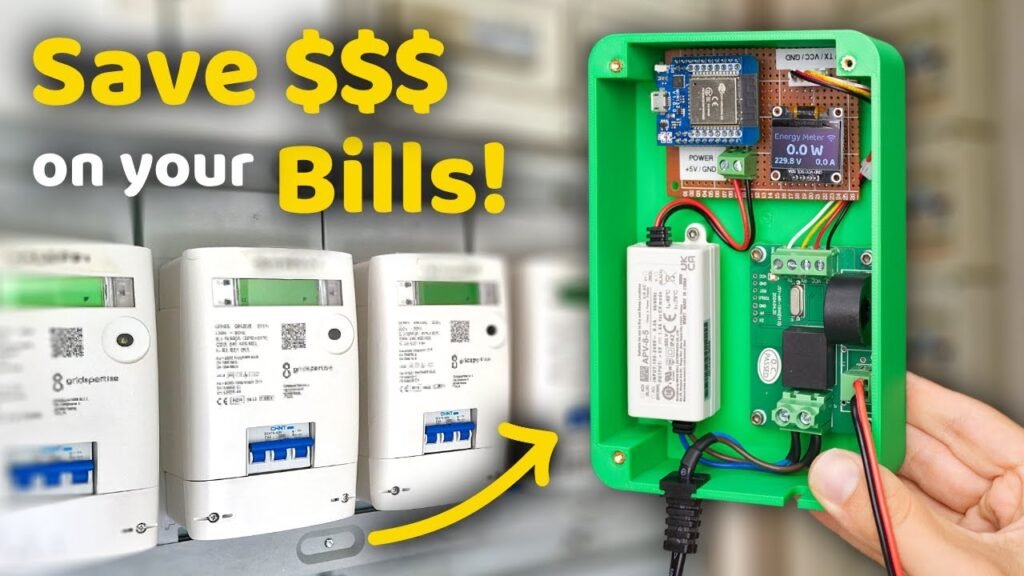

Build Your Own ESP32 Smart Energy Meter: Slash Bills with Real-Time Monitoring

Picture watching your electricity bill drop 15% as you detect vampire loads, balance phases, and schedule high-wattage devices off-peak—all using a $25 DIY monitor. With ESP32’s processing power and IoT capabilities, transform raw current data into actionable savings.

Why Track Energy? The Shocking Truth

Residential buildings waste 20-30% of electricity (US DoE). Commercial ESP32 solutions cost $200+, but a DIY build offers:

• Real-time appliance profiling: Spot energy hogs like old AC units or standby devices

• Grid independence: Monitor solar/wind input during outages

• Utility-grade accuracy: Achieve ±1% error with proper calibration

Component Selection: Balance Cost vs. Precision

Safety First: Always use 3D-printed enclosures rated for mains voltage. Never expose bare PCBs!

Wiring & Signal Conditioning: Industrial-Grade Accuracy

Circuit Design Essentials:

AC Line (L) → [ZMPT101B] → ESP32 GPIO34 (ADC1)
CT Clamp → [22Ω Burden Resistor] → ESP32 GPIO35 (ADC1)
ESP32 GPIO21/22 → OLED SDA/SCL

Critical Calibration Steps:

1. Phase Compensation:

   cpp

   // Adjust for CT clamp phase shift (typically 1.7° @ 50Hz)
   float phaseShift = 0.0297; // radians
   realPower = Vrms * Irms * cos(φ - phaseShift);

2. Voltage Calibration:

   • Measure wall voltage with multimeter → Scale ZMPT101B output

3. CT Linearization:

   • Test with known loads (100W bulb, 1500W heater)

Firmware: From Raw ADC to kWh Insights

1. Core Libraries

#include <EmonLib.h>   // Energy calculations
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h> // OLED
#include <WiFi.h>
#include <PubSubClient.h> // MQTT

2. Real Power Calculation

void loop() {
  sampleV = analogRead(VOLT_PIN) * 0.0008; // Convert ADC to volts (3.3V ref)
  sampleI = analogRead(CURRENT_PIN) * 0.0008;

  // Apply calibration factors
  Vrms = sampleV * 216.7; // For 220V systems
  Irms = sampleI * 30.0;  // SCT-013-030 scaling

  realPower = Vrms * Irms * powerFactor;
  energy += realPower * (sampleInterval / 3600000.0); // kWh
}

3. Data Transmission

void publishData() {
  client.publish("home/energy/power", String(realPower).c_str());
  client.publish("home/energy/kwh", String(energy, 3).c_str());
}

Cloud Integration: Turn Data Into Action

Case Study: Berlin maker reduced bills 18% by:

1. Identifying 24/7 80W server drain

2. Shifting laundry to off-peak hours

3. Adding automation: “IF solar > 3kW THEN enable EV charging”

Advanced Techniques for Utility-Grade Performance

1. Harmonic Filtering

   cpp

   // Apply 50/60Hz bandpass filter
   float filteredI = filter50Hz(rawI, sampleRate);

2. Voltage Sag Detection

   • Trigger UPS switch-on when voltage < 200V (220V systems)

3. Predictive Maintenance

   • Flag motor degradation when current harmonics increase >15%

Safety & Certification Considerations

• Isolation: Use double-insulated CT clamps (SCT-013)

• Enclosure: IP54 rating minimum for garage/outdoor use

• Legal Note: “This meter provides guidance only. Utility billing requires certified equipment.”

Real-World Applications Beyond Homes

1. Solar Farm Monitoring

   • Track input vs. grid export profits

2. EV Charging Stations

   • Enforce max current limits per socket

3. Industrial Machine Health

   • Detect bearing failures from motor current signatures

Troubleshooting Common Issues

• Noisy Readings?

  • Add 0.1µF capacitors between ADC pins and GND

  • Separate CT wires from mains cables

• WiFi Disconnects?

  • Use WiFi.setSleep(false) to prevent RF interference

• ADC Overflow?

  • Attach 100kΩ resistors as voltage dividers

Knowledge is Power – Literally
While utilities charge more each year, your ESP32 meter becomes the ultimate financial advisor: revealing hidden costs, enabling smart automation, and paying for itself in months.

“You can’t manage what you don’t measure. Now you measure everything.”

Start saving today: Which appliance will you audit first? Share your build journey below!

Resources & Credits

• OpenEnergyMonitor Hardware Guide

• ESP32 ADC Calibration Study

• IEC 61010 Safety Standards

#ESP32 #EnergyMonitoring #SmartGrid #IoT #RenewableEnergy #DIYEconomics

Disclaimer: Working with mains voltage requires expertise. Consult an electrician for permanent installations.
